cuCSRAffineMatrixFunction< DataType > Class Template Reference

Container for CSR affine matrix functions of one parameter. More...

#include <cu_csr_affine_matrix_function.h>

Inheritance diagram for cuCSRAffineMatrixFunction< DataType >:

Collaboration diagram for cuCSRAffineMatrixFunction< DataType >:

Public Member Functions
	cuCSRAffineMatrixFunction (const DataType *A_data_, const LongIndexType *A_indices_, const LongIndexType *A_index_pointer_, const LongIndexType num_rows_, const LongIndexType num_columns_, const FlagType A_is_symmetric_, const int num_gpu_devices_)
	Default constructor.
	cuCSRAffineMatrixFunction (const DataType *A_data_, const LongIndexType *A_indices_, const LongIndexType *A_index_pointer_, const LongIndexType num_rows_, const LongIndexType num_columns_, const FlagType A_is_symmetric_, const DataType *B_data_, const LongIndexType *B_indices_, const LongIndexType *B_index_pointer_, const FlagType B_is_symmetric_, const int num_gpu_devices_)
	Constructor.
virtual	~cuCSRAffineMatrixFunction ()
	Destructor.
virtual void	set_symmetry (const FlagType symmetric)
	Specify whether the matrices are symmetic or non-symmetric.
virtual void	dot (const DataType *vector, DataType *product)
	Matrix vector product.
virtual void	transpose_dot (const DataType *vector, DataType *product)
	Matrix vector product written in place.
Public Member Functions inherited from cuAffineMatrixFunction< DataType >
	cuAffineMatrixFunction ()
	Constructor.
virtual	~cuAffineMatrixFunction ()
	Virtual destructor.
void	set_parameters (DataType *t)
DataType	get_eigenvalue (const DataType *known_parameters, const DataType known_eigenvalue, const DataType *inquiry_parameters) const
	This function defines an analytic relationship between a given set of parameters and the corresponding eigenvalue of the operator. Namely, given a set of parameters and a known eigenvalue of the operator for that specific set of parameters, this function obtains the eigenvalue of the operator for an other given set of parameters.
Public Member Functions inherited from cuLinearOperator< DataType >
	cuLinearOperator ()
	Default constructor.
	cuLinearOperator (const int num_gpu_devices_)
	Constructor with setting num_rows and num_columns.
virtual	~cuLinearOperator ()
	Destructor.
cublasHandle_t	get_cublas_handle () const
	This function returns a reference to the cublasHandle_t object. The object will be created, if it is not created already.
void	set_parameters (DataType *parameters_)
	Sets the scalar parameter this->parameters. Parameter is initialized to NULL. However, before calling dot or transpose_dot functions, the parameters must be set.
Public Member Functions inherited from cLinearOperatorBase
	cLinearOperatorBase ()
	Default constructor.
	cLinearOperatorBase (const LongIndexType num_rows_, const LongIndexType num_columns_)
	Constructor with setting num_rows and num_columns.
virtual	~cLinearOperatorBase ()
	Destructor.
LongIndexType	get_num_rows () const
	Returns the number of rows of the matrix.
LongIndexType	get_num_columns () const
	Returns the number of columns of the matrix.
IndexType	get_num_parameters () const
	Returns the number of parameters of the linear operator.
FlagType	is_eigenvalue_relation_known () const
	Returns a flag that determines whether a relation between the parameters of the operator and its eigenvalue(s) is known.

Protected Attributes
cuCSRMatrix< DataType >	A
cuCSRMatrix< DataType >	B
Protected Attributes inherited from cuAffineMatrixFunction< DataType >
bool	B_is_identity
Protected Attributes inherited from cuLinearOperator< DataType >
int	num_gpu_devices
bool	copied_host_to_device
cublasHandle_t *	cublas_handle
cusparseHandle_t *	cusparse_handle
DataType *	parameters
Protected Attributes inherited from cLinearOperatorBase
const LongIndexType	num_rows
const LongIndexType	num_columns
FlagType	eigenvalue_relation_known
IndexType	num_parameters

Additional Inherited Members
Protected Member Functions inherited from cuAffineMatrixFunction< DataType >
void	_add_scaled_vector (const DataType *input_vector, const LongIndexType vector_size, const DataType scale, DataType *output_vector) const
	Performs the operation \( \boldsymbol{c} = \boldsymbol{c} + \alpha \boldsymbol{b} \), where \( \boldsymbol{b} \) is an input vector scaled by \( \alpha \) and \( \boldsymbol{c} \) it the output vector.
Protected Member Functions inherited from cuLinearOperator< DataType >
int	query_gpu_devices () const
	Before any numerical computation, this method chechs if any gpu device is available on the machine, or notifies the user if nothing was found.
void	initialize_cublas_handle ()
	Creates a cublasHandle_t object, if not created already.
void	initialize_cusparse_handle ()
	Creates a cusparseHandle_t object, if not created already.

Detailed Description

template<typename DataType>
class cuCSRAffineMatrixFunction< DataType >

Container for CSR affine matrix functions of one parameter.

The cuCSRAffineMatrixFunction contains two-dimensional compressed sparse row matrices A and B. This operoator can perofrom matrix-vector product and transposed matrix-vector product.

See also

cuAffineMatrixFunction, cuDenseMatrixFunction, cuCSCMatrixFunction, cuCSRMatrix, cCSRAffineMatrixFunction

Definition at line 45 of file cu_csr_affine_matrix_function.h.

Constructor & Destructor Documentation

cuCSRAffineMatrixFunction() [1/2]

template<typename DataType >

cuCSRAffineMatrixFunction< DataType >::cuCSRAffineMatrixFunction	(	const DataType *	A_data_,
		const LongIndexType *	A_indices_,
		const LongIndexType *	A_index_pointer_,
		const LongIndexType	num_rows_,
		const LongIndexType	num_columns_,
		const FlagType	A_is_symmetric_,
		const int	num_gpu_devices_
	)

Default constructor.

Matrix B is assumed to be the identity matrix.

Parameters

[in]	A_data_	1D array of the data content of sparse matrix. The size of the array is the nnz of the matrix.
[in]	A_indices_	1D array indicating the column of each element in A_data_ . The size of this array is the nnz of the matrix.
[in]	A_index_pointer_	1D array pointing to the start of new rows in A_indices_ . The size of this array is num_rows+1 . The first element of this array is 0 and the last element of this array is the nnz of the matrix.
[in]	num_rows_	Number of rows of A
[in]	num_columns_	Number of columns of A
[in]	A_is_symmetric_	Boolean. If A is symmetric, set this value to 1, otherwise 0.
[in]	num_gpu_devices_	Number of GPU devices to be utilized for parallel processing.

Definition at line 54 of file cu_csr_affine_matrix_function.cu.

                                   :

    // Base class constructor
    cLinearOperatorBase(num_rows_, num_columns_),
    cuLinearOperator<DataType>(num_gpu_devices_),

    // Initializer list
    A(A_data_, A_indices_, A_index_pointer_, num_rows_, num_columns_,
      A_is_symmetric_, num_gpu_devices_)
{
    // This constructor is called assuming B is identity
    this->B_is_identity = true;

    // When B is identity, the eigenvalues of A+tB are known for any t
    this->eigenvalue_relation_known = 1;

    // Set gpu device
    this->initialize_cusparse_handle();
}

References cuAffineMatrixFunction< DataType >::B_is_identity, cLinearOperatorBase::eigenvalue_relation_known, and cuLinearOperator< DataType >::initialize_cusparse_handle().

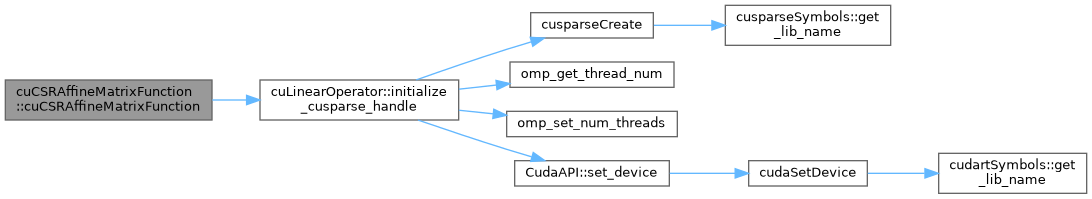

Here is the call graph for this function:

cuCSRAffineMatrixFunction() [2/2]

template<typename DataType >

cuCSRAffineMatrixFunction< DataType >::cuCSRAffineMatrixFunction	(	const DataType *	A_data_,
		const LongIndexType *	A_indices_,
		const LongIndexType *	A_index_pointer_,
		const LongIndexType	num_rows_,
		const LongIndexType	num_columns_,
		const FlagType	A_is_symmetric_,
		const DataType *	B_data_,
		const LongIndexType *	B_indices_,
		const LongIndexType *	B_index_pointer_,
		const FlagType	B_is_symmetric_,
		const int	num_gpu_devices_
	)

Constructor.

Parameters

[in]	A_data_	1D array of the data content of sparse matrix. The size of the array is the nnz of the matrix.
[in]	A_indices_	1D array indicating the column of each element in A_data_ . The size of this array is the nnz of the matrix.
[in]	A_index_pointer_	1D array pointing to the start of new rows in A_indices_ . The size of this array is num_rows+1 . The first element of this array is 0 and the last element of this array is the nnz of the matrix.
[in]	num_rows_	Number of rows of A and B
[in]	num_columns_	Number of columns of A and B
[in]	A_is_symmetric_	Boolean. If A is symmetric, set this value to 1, otherwise 0.
[in]	B_data_	1D array of the data content of sparse matrix. The size of the array is the nnz of the matrix.
[in]	B_indices_	1D array indicating the column of each element in B_data_ . The size of this array is the nnz of the matrix.
[in]	B_index_pointer_	1D array pointing to the start of new rows in B_indices_ . The size of this array is num_rows+1 . The first element of this array is 0 and the last element of this array is the nnz of the matrix.
[in]	B_is_symmetric_	Boolean. If B is symmetric, set this value to 1, otherwise 0.
[in]	num_gpu_devices_	Number of GPU devices to be utilized for parallel processing.

Definition at line 124 of file cu_csr_affine_matrix_function.cu.

                                   :

    // Base class constructor
    cLinearOperatorBase(num_rows_, num_columns_),
    cuLinearOperator<DataType>(num_gpu_devices_),

    // Initializer list
    A(A_data_, A_indices_, A_index_pointer_, num_rows_, num_columns_,
      A_is_symmetric_, num_gpu_devices_),
    B(B_data_, B_indices_, B_index_pointer_, num_rows_, num_columns_,
      B_is_symmetric_, num_gpu_devices_)
{
    // Matrix B is assumed to be non-zero. Check if it is identity or generic
    if (this->B.is_identity_matrix())
    {
        this->B_is_identity = true;
        this->eigenvalue_relation_known = 1;
    }

    // Set gpu device
    this->initialize_cusparse_handle();
}

References cuCSRAffineMatrixFunction< DataType >::B, cuAffineMatrixFunction< DataType >::B_is_identity, cLinearOperatorBase::eigenvalue_relation_known, and cuLinearOperator< DataType >::initialize_cusparse_handle().

Here is the call graph for this function:

~cuCSRAffineMatrixFunction()

template<typename DataType >

cuCSRAffineMatrixFunction< DataType >::~cuCSRAffineMatrixFunction ( )

virtual

Destructor.

Definition at line 167 of file cu_csr_affine_matrix_function.cu.

{
}

Member Function Documentation

dot()

template<typename DataType >

void cuCSRAffineMatrixFunction< DataType >::dot ( const DataType *  vector, DataType *  product  )

virtual

Matrix vector product.

Performs the matrix vector product \( \boldsymbol{y} = (\mathbf{A} + t \mathbf{B}) \boldsymbol{x} \).

Parameters

[in]	vector	A one-dimensional input vector \( \boldsymbol{x} \) with size the of the number of columns of the matrix \( \mathbf{A} \). This array should be on GPU device.
[out]	product	A one-dimensional output vector \( \boldsymbol{y} \) with the size of the number of rows of \( \mathbf{A} \). This vector will be overwritten. This array should be on GPU device.

See also

cuCSRAffineMatrixFunction::transpose_dot

Implements cuLinearOperator< DataType >.

Definition at line 226 of file cu_csr_affine_matrix_function.cu.

{
    // Matrix A times vector
    this->A.dot(vector, product);
    LongIndexType min_vector_size;

    // Matrix B times vector to be added to the product
    if (this->B_is_identity)
    {
        // Check parameter is set
        ASSERT((this->parameters != NULL), "Parameter is not set.");

        // Find minimum of the number of rows and columns
        min_vector_size = \
            (this->num_rows < this->num_columns) ? \
            this->num_rows : this->num_columns;

        // Adding input vector to product
        this->_add_scaled_vector(vector, min_vector_size,
                                 this->parameters[0], product);
    }
    else
    {
        // Check parameter is set
        ASSERT((this->parameters != NULL), "Parameter is not set.");

        // Adding parameter times B times input vector to the product
        this->B.dot_plus(vector, this->parameters[0], product);
    }
}

References ASSERT.

set_symmetry()

template<typename DataType >

void cuCSRAffineMatrixFunction< DataType >::set_symmetry ( const FlagType  symmetric )

virtual

Specify whether the matrices are symmetic or non-symmetric.

This function overwrites the symmetry status that has been set by the constructor. Note that the symmetry status of both matrices \( \mathbf{A} \) and \( \mathbf{B} \) in the linear operator \( \mathbf{A} + t \mathbf{B} \) will be set together.

Parameters

[in]

symmetric

Boolean. If set to 1, the matrix is assumed to be symmetric. Otherwiese non-symmetric.

Implements cuAffineMatrixFunction< DataType >.

Definition at line 189 of file cu_csr_affine_matrix_function.cu.

{
    if (symmetric == 1)
    {
        this->A.set_symmetry(1);
        this->B.set_symmetry(1);
    }
    else
    {
        this->A.set_symmetry(0);
        this->B.set_symmetry(0);
    }
}

transpose_dot()

template<typename DataType >

void cuCSRAffineMatrixFunction< DataType >::transpose_dot ( const DataType *  vector, DataType *  product  )

virtual

Matrix vector product written in place.

Performs the matrix vector product \( \boldsymbol{y} = (\mathbf{A} + t \mathbf{B})^{\intercal} \boldsymbol{x} \).

Parameters

[in]	vector	A one-dimensional input vector \( \boldsymbol{x} \) with size the of the number of columns of the matrix \( \mathbf{A} \). This array should be on GPU device.
[out]	product	A one-dimensional output vector \( \boldsymbol{y} \) with the size of the number of rows of \( \mathbf{A} \). This array should be on GPU device.

See also

cuCSRAffineMatrixFunction::dot

Implements cuLinearOperator< DataType >.

Definition at line 281 of file cu_csr_affine_matrix_function.cu.

{
    // Matrix A times vector
    this->A.transpose_dot(vector, product);
    LongIndexType min_vector_size;

    // Matrix B times vector to be added to the product
    if (this->B_is_identity)
    {
        // Check parameter is set
        ASSERT((this->parameters != NULL), "Parameter is not set.");

        // Find minimum of the number of rows and columns
        min_vector_size = \
            (this->num_rows < this->num_columns) ? \
            this->num_rows : this->num_columns;

        // Adding input vector to product
        this->_add_scaled_vector(vector, min_vector_size,
                                 this->parameters[0], product);
    }
    else
    {
        // Check parameter is set
        ASSERT((this->parameters != NULL), "Parameter is not set.");

        // Adding "parameter * B * input vector" to the product
        this->B.transpose_dot_plus(vector, this->parameters[0], product);
    }
}

References ASSERT.

Member Data Documentation

A

template<typename DataType >

cuCSRMatrix<DataType> cuCSRAffineMatrixFunction< DataType >::A

protected

Definition at line 87 of file cu_csr_affine_matrix_function.h.

B

template<typename DataType >

cuCSRMatrix<DataType> cuCSRAffineMatrixFunction< DataType >::B

protected

Definition at line 88 of file cu_csr_affine_matrix_function.h.

Referenced by cuCSRAffineMatrixFunction< DataType >::cuCSRAffineMatrixFunction().

---

The documentation for this class was generated from the following files:

• /home/runner/work/imate/imate/imate/_cu_linear_operator/cu_csr_affine_matrix_function.h
• /home/runner/work/imate/imate/imate/_cu_linear_operator/cu_csr_affine_matrix_function.cu
