cLinearOperatorBase Class Reference

Base class for cLinearOperator and cuLinearOperator . This class is not templated so that both cpp and cu classed can be derived from it without conflict of data types. More...

#include <c_linear_operator_base.h>

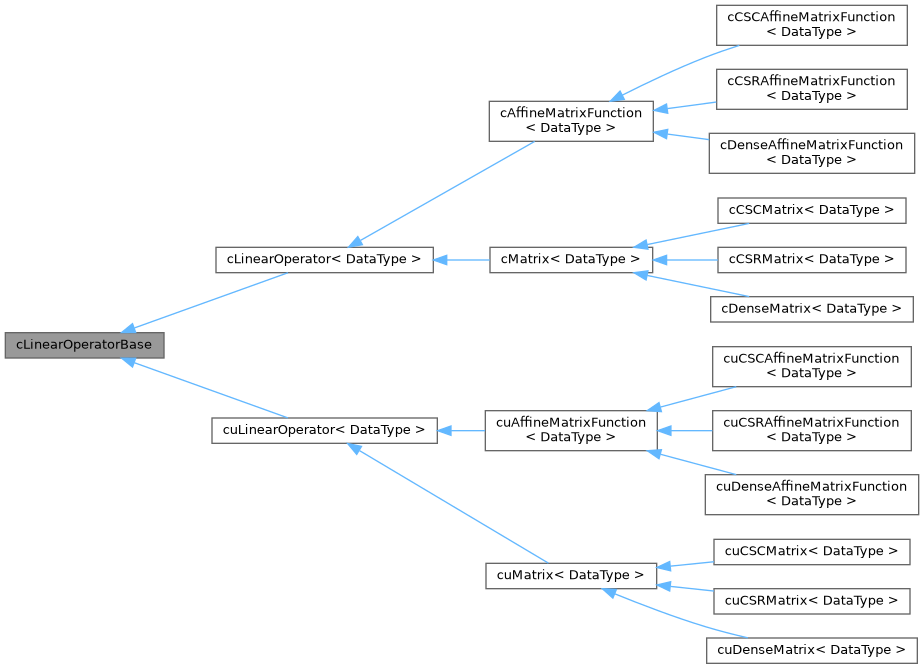

Inheritance diagram for cLinearOperatorBase:

Public Member Functions
	cLinearOperatorBase ()
	Default constructor.
	cLinearOperatorBase (const LongIndexType num_rows_, const LongIndexType num_columns_)
	Constructor with setting num_rows and num_columns.
virtual	~cLinearOperatorBase ()
	Destructor.
LongIndexType	get_num_rows () const
	Returns the number of rows of the matrix.
LongIndexType	get_num_columns () const
	Returns the number of columns of the matrix.
IndexType	get_num_parameters () const
	Returns the number of parameters of the linear operator.
FlagType	is_eigenvalue_relation_known () const
	Returns a flag that determines whether a relation between the parameters of the operator and its eigenvalue(s) is known.
virtual void	set_symmetry (FlagType symmetric)=0

Protected Attributes
const LongIndexType	num_rows
const LongIndexType	num_columns
FlagType	eigenvalue_relation_known
IndexType	num_parameters

Detailed Description

Base class for cLinearOperator and cuLinearOperator . This class is not templated so that both cpp and cu classed can be derived from it without conflict of data types.

The prefix c in this class's name (and its derivatves), stands for the cpp code, intrast to the cu prefix, which stands for the cuda code. Most derived classes have a cuda counterpart.

See also

cLinearOperator, cuLinearOperator

Definition at line 39 of file c_linear_operator_base.h.

Constructor & Destructor Documentation

cLinearOperatorBase() [1/2]

cLinearOperatorBase::cLinearOperatorBase

(

)

Default constructor.

Definition at line 27 of file c_linear_operator_base.cpp.

                                        :
    num_rows(0),
    num_columns(0),
    eigenvalue_relation_known(0),
    num_parameters(0)
{
}

cLinearOperatorBase() [2/2]

cLinearOperatorBase::cLinearOperatorBase	(	const LongIndexType	num_rows_,
		const LongIndexType	num_columns_
	)

Constructor with setting num_rows and num_columns.

Note

For the classed that are virtually derived (virtual inheritance) from this class, this constructor will never be called. Rather, the default constructor is called by the most derived class. Thus, set the member data directly instead of below.

Parameters

[in]	num_rows_	Number of rows of A
[in]	num_columns_	Number of columns of A

Definition at line 53 of file c_linear_operator_base.cpp.

                                         :

    // Initializer list
    num_rows(num_rows_),
    num_columns(num_columns_),
    eigenvalue_relation_known(0),
    num_parameters(0)
{
}

~cLinearOperatorBase()

cLinearOperatorBase::~cLinearOperatorBase ( )

virtual

Destructor.

Definition at line 73 of file c_linear_operator_base.cpp.

{
}

Member Function Documentation

get_num_columns()

LongIndexType cLinearOperatorBase::get_num_columns

(

)

const

Returns the number of columns of the matrix.

Returns

Number of matrix columns

Definition at line 100 of file c_linear_operator_base.cpp.

{
    return this->num_columns;
}

References num_columns.

get_num_parameters()

IndexType cLinearOperatorBase::get_num_parameters

(

)

const

Returns the number of parameters of the linear operator.

For the subclass cMatrix, this value is zero. For the subclass cAffineMatrixFunction, this value is a non-zero integer.

Returns

Number of nonzero elements

Definition at line 117 of file c_linear_operator_base.cpp.

{
    return this->num_parameters;
}

References num_parameters.

Referenced by cTraceEstimator< DataType >::_c_stochastic_lanczos_quadrature(), and cuTraceEstimator< DataType >::_cu_stochastic_lanczos_quadrature().

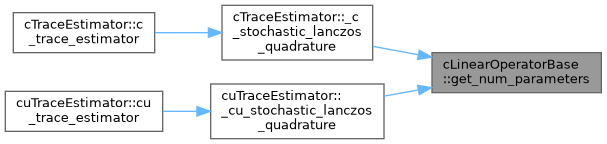

Here is the caller graph for this function:

get_num_rows()

LongIndexType cLinearOperatorBase::get_num_rows

(

)

const

Returns the number of rows of the matrix.

Returns

Number of matrix rows

Definition at line 86 of file c_linear_operator_base.cpp.

{
    return this->num_rows;
}

References num_rows.

Referenced by cTraceEstimator< DataType >::_c_stochastic_lanczos_quadrature(), cuTraceEstimator< DataType >::_cu_stochastic_lanczos_quadrature(), cTraceEstimator< DataType >::c_trace_estimator(), and cuTraceEstimator< DataType >::cu_trace_estimator().

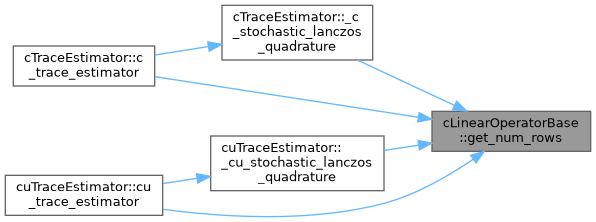

Here is the caller graph for this function:

is_eigenvalue_relation_known()

FlagType cLinearOperatorBase::is_eigenvalue_relation_known

(

)

const

Returns a flag that determines whether a relation between the parameters of the operator and its eigenvalue(s) is known.

Returns

If the relation between parameters and eigenvalue of the operator is known, returns 1, otherwise returns 0.

Definition at line 133 of file c_linear_operator_base.cpp.

{
    return this->eigenvalue_relation_known;
}

References eigenvalue_relation_known.

Referenced by cTraceEstimator< DataType >::_c_stochastic_lanczos_quadrature(), and cuTraceEstimator< DataType >::_cu_stochastic_lanczos_quadrature().

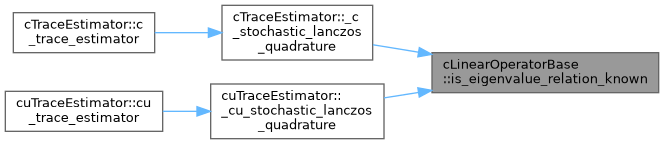

Here is the caller graph for this function:

set_symmetry()

virtual void cLinearOperatorBase::set_symmetry ( FlagType  symmetric )

pure virtual

Implemented in cCSCAffineMatrixFunction< DataType >, cCSRAffineMatrixFunction< DataType >, cDenseAffineMatrixFunction< DataType >, cMatrix< DataType >, cuCSCAffineMatrixFunction< DataType >, cuCSRAffineMatrixFunction< DataType >, cuDenseAffineMatrixFunction< DataType >, cuMatrix< DataType >, cAffineMatrixFunction< DataType >, and cuAffineMatrixFunction< DataType >.

Referenced by cCSCAffineMatrixFunction< DataType >::set_symmetry(), cCSRAffineMatrixFunction< DataType >::set_symmetry(), and cDenseAffineMatrixFunction< DataType >::set_symmetry().

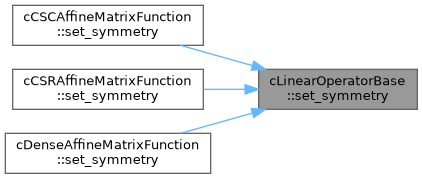

Here is the caller graph for this function:

Member Data Documentation

eigenvalue_relation_known

FlagType cLinearOperatorBase::eigenvalue_relation_known

protected

Definition at line 64 of file c_linear_operator_base.h.

Referenced by cCSCAffineMatrixFunction< DataType >::cCSCAffineMatrixFunction(), cCSCAffineMatrixFunction< DataType >::cCSCAffineMatrixFunction(), cCSRAffineMatrixFunction< DataType >::cCSRAffineMatrixFunction(), cCSRAffineMatrixFunction< DataType >::cCSRAffineMatrixFunction(), cDenseAffineMatrixFunction< DataType >::cDenseAffineMatrixFunction(), cDenseAffineMatrixFunction< DataType >::cDenseAffineMatrixFunction(), cuCSCAffineMatrixFunction< DataType >::cuCSCAffineMatrixFunction(), cuCSCAffineMatrixFunction< DataType >::cuCSCAffineMatrixFunction(), cuCSRAffineMatrixFunction< DataType >::cuCSRAffineMatrixFunction(), cuCSRAffineMatrixFunction< DataType >::cuCSRAffineMatrixFunction(), cuDenseAffineMatrixFunction< DataType >::cuDenseAffineMatrixFunction(), cuDenseAffineMatrixFunction< DataType >::cuDenseAffineMatrixFunction(), and is_eigenvalue_relation_known().

num_columns

const LongIndexType cLinearOperatorBase::num_columns

protected

Definition at line 63 of file c_linear_operator_base.h.

Referenced by get_num_columns().

num_parameters

IndexType cLinearOperatorBase::num_parameters

protected

Definition at line 65 of file c_linear_operator_base.h.

Referenced by cAffineMatrixFunction< DataType >::cAffineMatrixFunction(), cuAffineMatrixFunction< DataType >::cuAffineMatrixFunction(), and get_num_parameters().

num_rows

const LongIndexType cLinearOperatorBase::num_rows

protected

Definition at line 62 of file c_linear_operator_base.h.

Referenced by get_num_rows().

---

The documentation for this class was generated from the following files:

• /home/runner/work/imate/imate/imate/_c_linear_operator/c_linear_operator_base.h
• /home/runner/work/imate/imate/imate/_c_linear_operator/c_linear_operator_base.cpp
